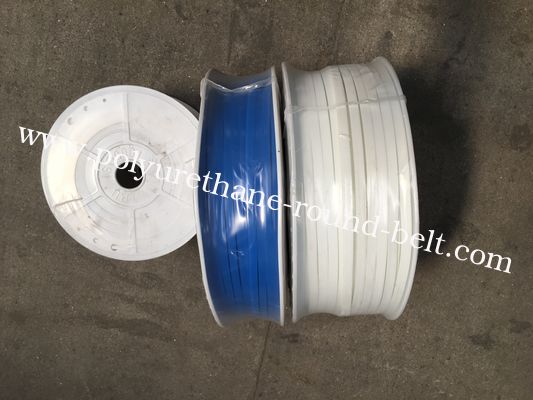

High Tensile Strength PU And PVC Guide In Blue Color For Transmission Industry
Place of Origin | China |
---|---|
Brand Name | Jiunai |
Certification | ROHS |
Model Number | 6X4,8X5,10X6,13X8,17x11 |
Minimum Order Quantity | 1000meters |
Price | USD0.37-15per meter |
Packaging Details | Inner packing is plastic film. Outer packing is carton |
Payment Terms | Western Union, T/T, L/C |
Supply Ability | 100000meters per month |
Material | Polyurethane | Main Function | Guide The Products |
---|---|---|---|
Hardness | 75 Shore A | Length | 100meters /roll |
Type | PU GuideZ | ||
High Light | green round belt,pu round belt,75 shore a pvc guide |
PU Guide of transmission industry
Specification
Specification | X(mm) | H(mm) | M/rolls | Hardness | |
6X4 | 6 | 4 | 100 | 70A-80A | |
8X5 | 8 | 5 | 50 | 70A-80A | |
10X6 | 10 | 6 | 50 | 70A-80A | |
13X8 | 13 | 8 | 30 | 70A-80A | |
17X11 | 17 | 11 | 30 | 70A-80A | |
22X14 | 22 | 14 | 30 | 70A-80A |
Pu Guide
(1)Thermoplastic polyurethane material, easy to be melted jointed,100% pure polyurethane
(2)Temperature range -35℃ - 80℃
(3)Shore A hardness range 70-80A
(4) With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(5) Specification including A, B, C , D, M , Z, widely used in ceramic industries with excellent abrasion resistance.
