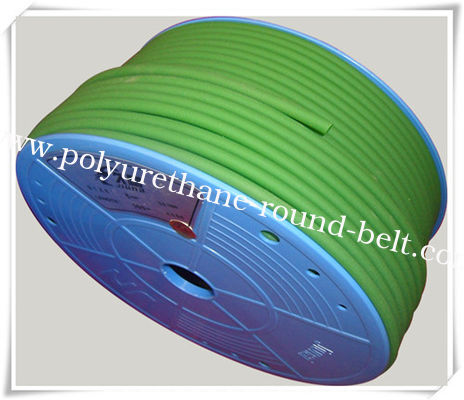

3mm - 20mm green or orange Tensile Strength PU Round Belt For Packing Machine

3mm - 20mm green or orange Tensile Strength PU Round Belt For Packing Machine
3mm - 20mm green or orange Tensile Strength PU Round Belt For Packing Machine 3mm - 20mm green or orange Tensile Strength PU Round Belt For Packing Machine 3mm - 20mm green or orange Tensile Strength PU Round Belt For Packing Machine 3mm - 20mm green or orange Tensile Strength PU Round Belt For Packing Machine

Large Image :  3mm - 20mm green or orange Tensile Strength PU Round Belt For Packing Machine

Product Details:

Place of Origin: china
Brand Name: JIUNA
Certification: ROHS
Model Number: Dia3mm-20mm

Payment & Shipping Terms:

Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 96.000 meters per Month
Detailed Product Description
Color: Green Orange Longth: 200m/roll 100m/ Roll 50m /roll 30m Roll
Radius Of Gyration: 20mm-160mm Material: Pu
Hardness: 85A-90A Export Port: Shanghai Port
High Light:

pu extruded belt

,

green round belt

3m - 12mm Tensile Strength PU Round Belt For Packing Machine



Features:

Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set



Application:

Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.



We offer a complete line of Polyester and Polyurethane Round belts for use in transmission industrial machines. And In the conveyance of products ranging from transport machine,conveyor machine to glass and tile. Round belts are available with smooth and rough surfaces and reinforced with polyester, nylon or fibers. Also can welding belt to O-ring . supply the connecting tools & Accessories for polyurethane belts , include clamp ,the Electric Iron and Knife , Connecting methods is hotpress welding , overlap welding .

The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shafts .





Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30





3mm - 20mm green or orange Tensile Strength PU Round Belt For Packing Machine 0
