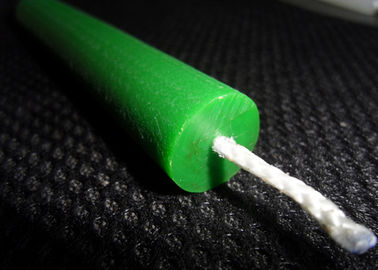

OEM Custom-made Polyester Cord Polyurethane Belts reinforced Kevlar Belts
Place of Origin | China |
---|---|
Brand Name | Jiuna |
Certification | ROHS |
Model Number | Diameter 5mm~20mm |
Minimum Order Quantity | 1200 Meter |
Packaging Details | Inner packing is plastic film .outer packing is carton |
Delivery Time | Within 5 working days After receipt of your deposit |
Payment Terms | T/T, 50% payment in advance ,50% balance before shipment |
Supply Ability | 96.000 meters per Month |
High Light | Reinforced cord belt,polyurethane flat belt |
---|
OEM Custom-made Polyester Cord Polyurethane Belts reinforced
Application for reinforced cord polyruethane belt
1. Tableware conveyor line systems
2. Ceramic ,floor tile and brick industry
3. Timber industry
4. Furniture industry
5. Printing industry
6. Textile industry
7. Paper factory
8. Bowling alleys
9. Electronic manufacturing
10. Roller conveyor systems in logistic centers
Products introduction :
Reinforced polyurethane belt of hardness is 85 shore A ~90 shore , reinforced cord material is nylon ,fibers ,kevlar ans steel cord , mainly apply to transmission line ,help climb device and so on , we have professional worker can help you to jointed belt .
Item φ | least radius of gyration | stretch rate | Maximum tensile rate | Hardness | length of rolled | ||
DIA | In | mm | Stretching rate | Kg | Lbs | Hardness | Roll |
5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 85 | 100 |
6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 85 | 100 |
7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 85 | 100 |
8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 85 | 100 |
9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 85 | 50 |
10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 85 | 50 |
12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 85 | 30 |
15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 85 | 30 |
characteristics for reinforced belt.
1.High resilience ,low level of belt stretching .
2.High tensile strength
3.Excellent wear and abrasion resistance
4.Resistance to oil. Grease, dirt and most chemicals
5.can be welding through overlap welding
6.reinforced cord : nylon , kevlar ,steel
7.hardness 85 shore A ~ 95 shore A
8.color on your request
