Corrugated Belt PU Vee Grip Belt with Top Green PVC Surface

China Corrugated Belt PU Vee Grip Belt with Top Green PVC Surface supplier
Corrugated Belt PU Vee Grip Belt with Top Green PVC Surface supplier Corrugated Belt PU Vee Grip Belt with Top Green PVC Surface supplier

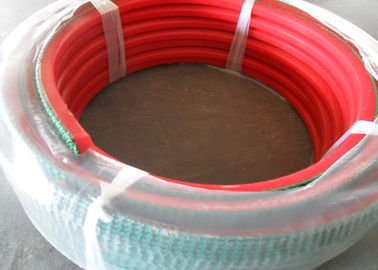

Large Image :  Corrugated Belt PU Vee Grip Belt with Top Green PVC Surface

Product Details:

Place of Origin: China
Brand Name: Jiuna
Certification: ROHS
Model Number: A-13 / B-17 / C-22
Hardness: 85 shore A ~90 shore A
Length: 30 meter /roll

Payment & Shipping Terms:

Minimum Order Quantity: 10rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Delivery Time: Within 5 working days After receipt of your deposit
Payment Terms: T/T, 50% payment in advance ,50% balance before shipment
Supply Ability: 96.000 meters per Month
Export port: shanghai
Factory: Wuxi City
Contact Now
Detailed Product Description



Corrugated Belt PU Vee Grip Belt with Top Green PVC Surface





Super grip Belt Feature :

  • Profile shape: Vee
  • Profile size: A/13, B/17, C/22
  • Reinforcement: None
  • Color: Green, Red
  • Compliancy: RoHS
  • Durometer: 80A, 90A
  • Material: Polyurethane, PVC Top Surface
  • Special Feature: PVC Grip Top Surface
  • Package Length: 30meter /roll
  • Easily welded endless vee belt .



 Vee-Belt Application :

1.  Widely used in conveying slippery environments,

2.  up steep inclines conveying industrial .

Corrugated Belt PU Vee Grip Belt with Top Green PVC Surface

Specification

X(mm)

H(mm)

Z(mm)

M/rolls

reinforced

arabesquitic

A

13

8

3.5

30

·

·

B

17

11

3.5

30

·

·

C

22

14

3.5

30

·

·

D

32

19

3.5

30

·

·

M

8

4



50





Z

10

5

3.5

50

·

·



Products introduction:



Super grip belt are ideally suited for applications where conveying in slippery environments, up steep inclines, or moving easily damaged products is more important than abrasion resistance.

PU Vee Super Grip with top PVC surface is soft and tacky enough that it won’t damage your precious cargo while giving you the grip that you need. The ultra-high grip material is produced with an extremely compliant pattern .

Conveying applications that require the elasticity of an unreinforced V-belt combined with a super grip surface.
