85A - 90A PU Round conveyor Belt Fuels Oxygen Glass Industry

  • 85A - 90A PU Round conveyor Belt Fuels Oxygen Glass Industry
  • 85A - 90A PU Round conveyor Belt Fuels Oxygen Glass Industry
  • 85A - 90A PU Round conveyor Belt Fuels Oxygen Glass Industry
  • 85A - 90A PU Round conveyor Belt Fuels Oxygen Glass Industry
Place of Origin China
Brand Name jiuna
Certification ROHS
Model Number Diameter 5mm~15mm
Minimum Order Quantity 10rolls
Packaging Details Inner packing is plastic film .outer packing is carton .
Delivery Time Within 5 working days After receipt of your deposit
Payment Terms T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability 96.000 meters per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Tensile Rate 0.3kg-31.3kg Color Green Or As Your Require
Stretching Rate 1.5%-3% Material PU
Longth 300m/roll 200m/roll 100m/roll Hardness 85A-90A
High Light

pu round belt

,

pu extruded belt
Leave a Message
Product Description

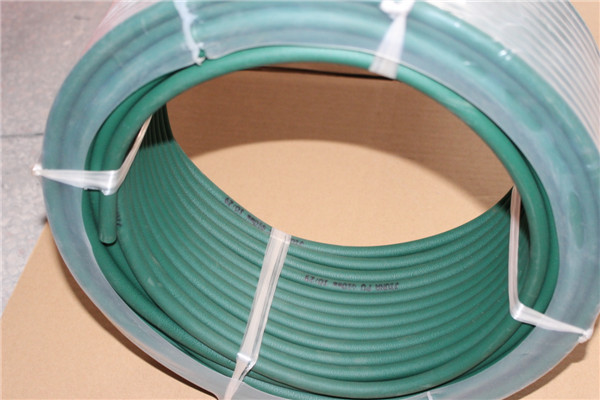

85A - 90A PU Round conveyor Belt  Fuels Oxygen Glass Industry

PU Cord Belt Application :

 (1)printing and packing machine

 (2)food & beverage processing

 (3)wood processing

 (4)paper processing

 (5) electronic

 (6)post service

 (7)tobacco transmission line

PU Cord Properties :

(1)Excellent abrasion resistance.

(2)Good resistance to fuel , oils and oxygen.

(3)Contains no plasticizer.

(4)Wide application temperature from -30℃~+80℃

transmission Round Belting Feature :

 (1)   With excellent bend resistant

 (2)   wear resistant

 (3)  easy connected

 (4)    t's not easy to be broken at low temperature

Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

DIA

(mm)

 In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)
2 0.79 20 mm 1.5-3% 0.3 0.7 90 400
3 0.98 25  mm 1.5-3% 0.7 1.6 90 400
4 1.38 35  mm 1.5-3% 1.2 2.7 85 200
5 1.57 40  mm 1.5-3% 2.0 4.3 85 100
6 1.97 50  mm 1.5-3% 3.2 7.0 85 100
7 2.17 55  mm 1.5-3% 4.1 9.0 85 100
8 2.56 65  mm 1.5-3% 5.0 11.0 85 100
9 2.95 75  mm 1.5-3% 6.8 15.0 85 50
10 2.95 75  mm 1.5-3% 7.7 17.0 85 50
12 3.94 100 mm 1.5-3% 12.2 27.0 85 30
15 4.72 120 mm 1.5-3% 17.7 39.0 85 30
18 5.71 145 mm 1.5-3% 25.4 56.0 85 30
20 6.30 160 mm 1.5-3% 31.3 69.0 85

30





85A - 90A PU Round conveyor Belt Fuels Oxygen Glass Industry 085A - 90A PU Round conveyor Belt Fuels Oxygen Glass Industry 1
