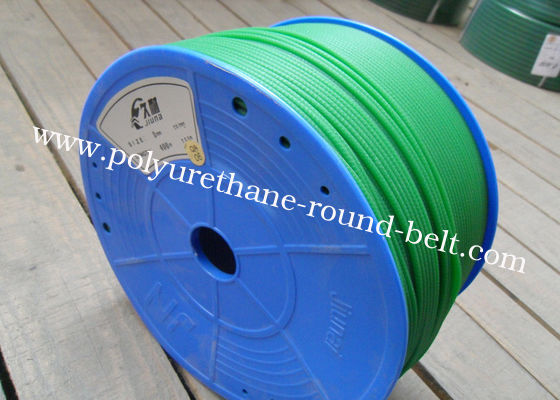

3mm green color and orange color Diameter Industrial transmission PU Polyurethane Round Belt cord

  • 3mm green color and orange color Diameter Industrial transmission PU Polyurethane Round Belt cord
  • 3mm green color and orange color Diameter Industrial transmission PU Polyurethane Round Belt cord
  • 3mm green color and orange color Diameter Industrial transmission PU Polyurethane Round Belt cord
  • 3mm green color and orange color Diameter Industrial transmission PU Polyurethane Round Belt cord
Place of Origin China
Brand Name Jiuna
Certification ROHS
Model Number Diameter 3 mm
Minimum Order Quantity 10rolls
Packaging Details Inner packing is plastic film .outer packing is carton
Delivery Time Within 5 working days After receipt of your deposit
Payment Terms T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability 96.000 meters per Month
Product Details
Length 400 Meter /rolls Hardness 85 Shore A -90 Shore A
Color Orange Or Green Material PU
Type PU Round Belt Surface Rough And Smooth
High Light

pu round belt

,

pu extruded belt
Leave a Message
Product Description

3mm Diameter Industrial transmission PU Polyurethane Round Belt cord



Features:

Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:

Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.



Rough Round Belt
Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed.
(2)Reinforced by Polyester Cord or Steel Cord.
(3)Temperature range -35 celsius degree - 80celsius degree.
(4)Shore A hardness range 80A - 98A.
(5)With excellent resistance to flex, abrasion resistance, easy jointed and Other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. Is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.
(7)V-belt Specifications include the A, B, C, D, M, Z type
Widely used in ceramic industry, excellent wear resistance.
(8)Pentagon Belt, Septangular Belt, Suppergrip belt
Specifications include A, B, C three type.



Items NO.Φ

Least radius of gyration

Stretching rate

Maximum tensile rate

Hardness

Length of rolled

DIA(mm)

 In

mm

  %

Kg

Lbs

Shore( A)

Length of rolled

2mm

0.79

20

1.5-3%

0.3

0.7

95

400

2.5mm

0.87

22

1.5-3%

0.4

0.9

95

400

3mm

0.98

25

1.5-3%

0.7

1.6

90

400

3.5mm

1.18

30

1.5-3%

0.95

2.1

90

400

4mm

1.38

35

1.5-3%

1.2

2.7

90

200

5mm

1.57

40

1.5-3%

2.0

4.3

90

100

6mm

1.97

50

1.5-3%

3.2

7.0

90

100

7mm

2.17

55

1.5-3%

4.1

9.0

90

100

8mm

2.56

65

1.5-3%

5.0

11.0

90

100

9mm

2.95

75

1.5-3%

6.8

15.0

90

50

10mm

2.95

75

1.5-3%

7.7

17.0

90

50

12mm

3.94

100

1.5-3%

12.2

27.0

90

30

15mm

4.72

120

1.5-3%

17.7

39.0

90

30

18mm

5.71

145

1.5-3%

25.4

56.0

90

30

20mm

6.30

160

1.5-3%

31.3

69.0

90

30

3mm green color and orange color Diameter Industrial transmission PU Polyurethane Round Belt cord 03mm green color and orange color Diameter Industrial transmission PU Polyurethane Round Belt cord 1
