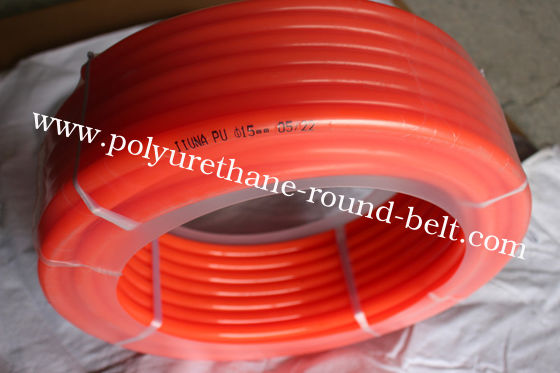

Orange Smooth PU Round Belt Hardness 90A with wear-resistance
| Place of Origin | China |
|---|---|
| Brand Name | Jiuna |
| Certification | ROHS |
| Model Number | Diameter 3 ~20 mm |
| Minimum Order Quantity | 10rolls |
| Packaging Details | Inner packing is plastic film .outer packing is carton . |
| Delivery Time | Within 7 working days After receipt of your deposit |
| Payment Terms | T/T, 50% payment in advance ,50% balance before shipment |
| Supply Ability | 96.000 meters per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PU ,TPU | Type | PU Round Belt |
|---|---|---|---|
| Surface | Smooth | Hardness | 90A |
| Standard Or Nonstandard | Standard | Elongation | 550%-650% |
| Highlight | pu round belt,green round belt |
||
Product Description
Orange Smooth PU Round Belt Hardness 90A with wear-resistance
Polyurethane Round Belt
Features:
1) made of PU material, easy to be joint at high heat.
2) Available to add nylon cord or steel cord
3) Tolerant temperturer: -35℃--80℃
4) High capacity on wear-resistance, flexibity. Wildly applied in varies industries such as textile, package, printing, machinery, electricity electronics, glass,ceramics, ESPECIALLY in ceramic/marble, they are welcome in the polishing& glazing .
5) Round belt:
a: diameter: 2mm--30mm
b: surface: vivid
Polyurethane belting of introduction:
Special color round belt can be custom-made ,
Yellow and blue pearl round belt applied to sports leisure fitness industrial like skipping rope.
Urethane round belts are elastomeric belts for power transmission application.
Having most metric sizes (2mm to 20mm) and standard O-ring sizes.
Polyether and Polyurethane round belts have best resilience of any elastic material.Polyester product
Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set
Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.
Items NO.Φ | Least radius of gyration | Stretching rate | Maximum tensile rate | Hardness | Length of rolled | ||
DIA(mm) | In | mm | % | Kg | Lbs | Shore( A) | Length of rolled |
2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 95 | 400 |
2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 95 | 400 |
3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 90 | 400 |
4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 90 | 200 |
5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 90 | 100 |
6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 90 | 100 |
7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 90 | 100 |
8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 90 | 100 |
9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 90 | 50 |
10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 90 | 50 |
12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 90 | 30 |
15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 90 | 30 |
18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 90 | 30 |
20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 90 | 30 |
