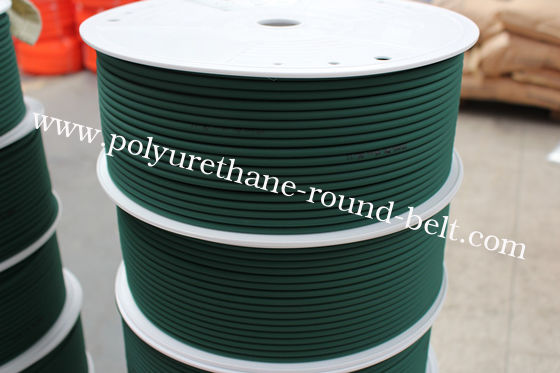

Green 85A Polyurethane Round Belt Packing Machine
| Place of Origin | china |
|---|---|
| Brand Name | jiuna |
| Certification | ROHS |
| Model Number | Diameter 3mm-20mm |
| Minimum Order Quantity | 10 rolls |
| Packaging Details | Inner packing is plastic film .outer packing is carton |
| Delivery Time | Within 5 working days After receipt of your deposit |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 100.000 meters per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Hardness | 85A | Color | Green |
|---|---|---|---|
| Stretching Rate | 1.5-3% | Surface | Rough |
| Material | PU | Length | 400m/roll 300m/roll 200m/roll 100m/roll 30m/roll |
| High Light | pu round belt,pu extruded belt |
||
Product Description
Rough Surface Polyurethane Round Belt Green Packing Machine
Features:
1) made of PU material, easy to be joint at high heat.
2) Available to add nylon cord or steel cord
3) Tolerant temperturer: -35℃--80℃
4) High capacity on wear-resistance, flexibity. Wildly applied in varies industries such as
textile, package, printing, machinery, electricity electronics, glass,ceramics, ESPECIALLY
in ceramic/marble, they are welcome in the polishing& glazing .
5) Round belt:
a: diameter: 2mm--30mm
b: surface: vivid color with glossy surface; neat granule spread fairly for rough surface type.
Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set
Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.
Items NO.Φ | Least radius of gyration | Stretching rate | Maximum tensile rate | Hardness | Length of rolled | ||
DIA(mm) | In | mm | % | Kg | Lbs | Shore( A) | Length of rolled |
2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 95 | 400 |
2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 95 | 400 |
3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 90 | 400 |
4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 90 | 200 |
5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 90 | 100 |
6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 90 | 100 |
7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 90 | 100 |
8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 90 | 100 |
9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 90 | 50 |
10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 90 | 50 |
12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 90 | 30 |
15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 90 | 30 |
18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 90 | 30 |
20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 90 | 30 |
