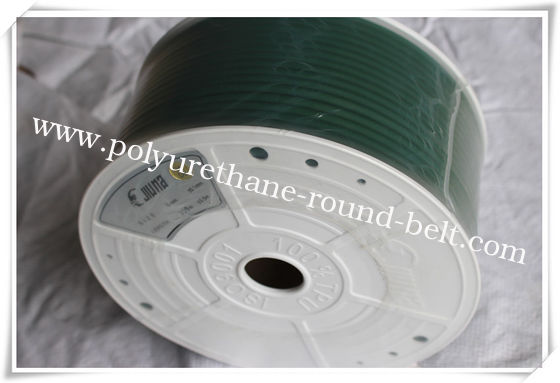

Abrasion Resistant Polyurethane Round Belt Dark Green 85A - 90A

  • Abrasion Resistant Polyurethane Round Belt Dark Green 85A - 90A
  • Abrasion Resistant Polyurethane Round Belt Dark Green 85A - 90A
  • Abrasion Resistant Polyurethane Round Belt Dark Green 85A - 90A
  • Abrasion Resistant Polyurethane Round Belt Dark Green 85A - 90A
Place of Origin China
Brand Name jiuna
Certification ROHS
Model Number Diameter 2mm~20mm
Minimum Order Quantity 10rolls
Packaging Details Inner packing is plastic film .outer packing is carton .
Delivery Time Within 5 working days After receipt of your deposit
Payment Terms T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C
Supply Ability 96.000 meters per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Green Material PU
Longth 300m/roll 200m/roll 100m/roll 30m/roll Hardness 85A-90A
Tensile Rate 0.3kg-31.3kg Tensile Strength 55N/mm2
Highlight

pu round belt

,

pu extruded belt
Leave a Message
Product Description

Abrasion Resistant Polyurethane Round Belt Dark Green 85A - 90A

Detailed Product Description:

PU Cord Belt Application :

1. Wall floor tile conveying industrial line

2. printing and packing machine

3. food & beverage processing

4. wood processing

5. paper processing

6. electronic

7. post service

8. tobacco transmission line

PU Cord Properties :

-Excellent abrasion resistance.

-Good resistance to fuel , oils and oxygen.

-Contains no plasticizer.

-Wide application temperature from -30℃~+80℃



Transmission PU Rough Round Belt ; Polyurethane Round Belt, PU Smooth Round Belt,

 PU Rough Round Belt

Details:

(1)Thermoplastic polyurethane material, easy to be melted jointed

(2)Reinforced by Polyester Cord or Steel Cord

(3)Temperature range -35°C - 80°C

(4)Shore A hardness range 80A - 98A

(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics.

 Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics

 and other industries, especially in the ceramic industry, widely used in the facilities line

the glaze, polishing lines, and transmission line.

(6)Round Belt:

Round Belt Dia. is from 2mm to 30mm

Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used

widely.

PU Round belt with reinforcement





Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

DIA

(mm)

 In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)
2 0.79  20 1.5-3% 0.3 0.7 90 400
3 0.98 25 1.5-3% 0.7 1.6 90 400
4 1.38 35 1.5-3% 1.2 2.7 85 200
5 1.57 40 1.5-3% 2.0 4.3 85 100
6 1.97 50 1.5-3% 3.2 7.0 85 100
7 2.17 55 1.5-3% 4.1 9.0 85 100
8 2.56 65 1.5-3% 5.0 11.0 85 100
9 2.95 75 1.5-3% 6.8 15.0 85 50
10 2.95 75 1.5-3% 7.7 17.0 85 50
12 3.94 100 1.5-3% 12.2 27.0 85 30
15 4.72 120 1.5-3% 17.7 39.0 85 30
18 5.71 145 1.5-3% 25.4 56.0 85 30
20 6.30 160 1.5-3% 31.3 69.0 85

30
