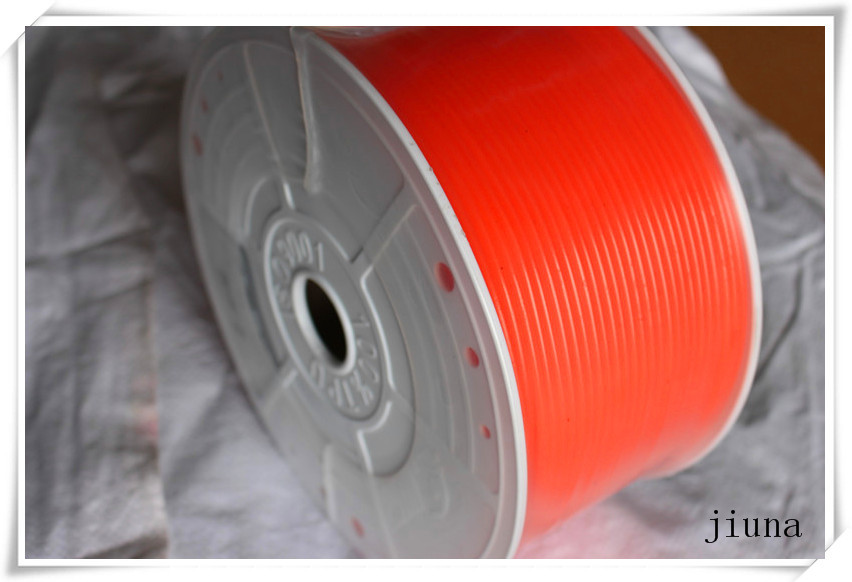

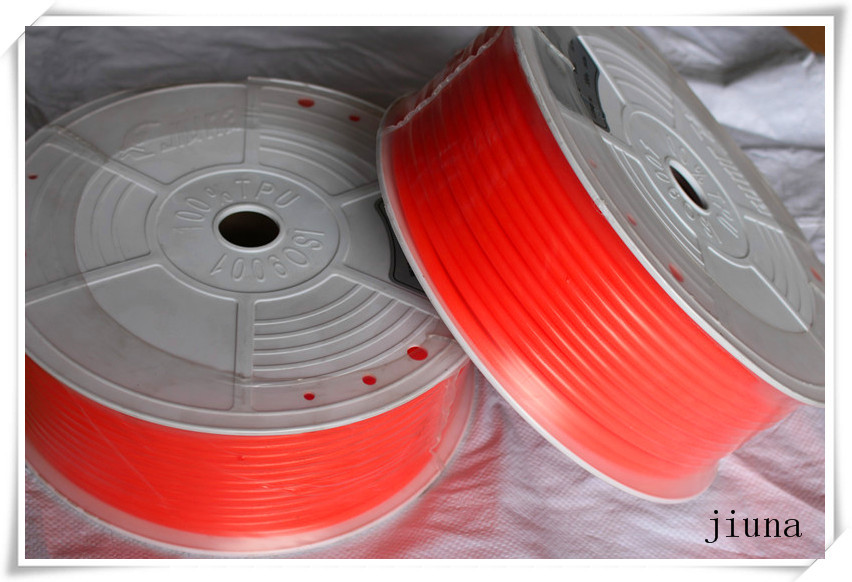

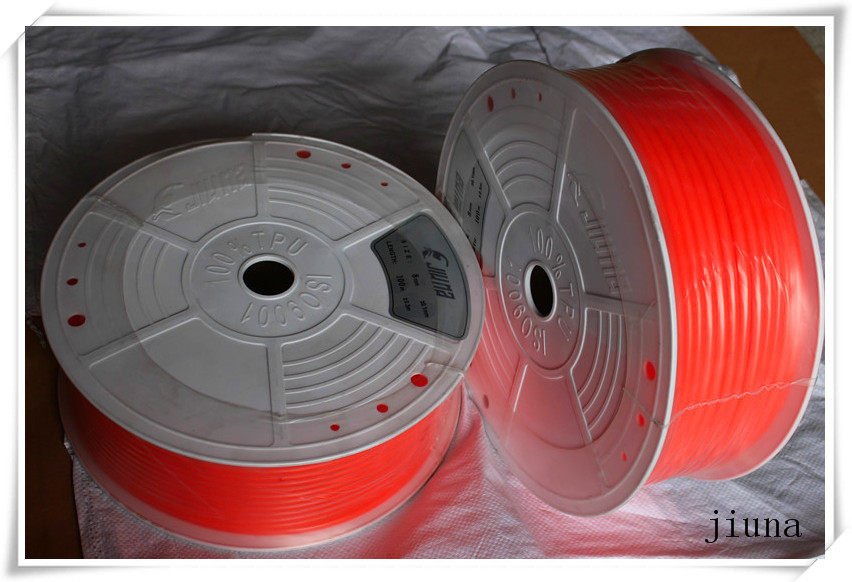

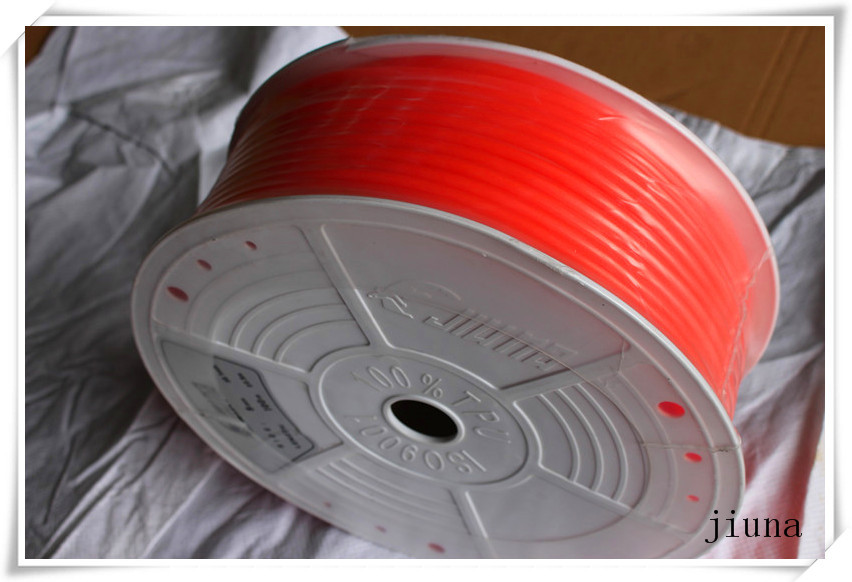

Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll

  • Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll
  • Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll
  • Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll
  • Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll
Place of Origin china
Brand Name jiuna
Certification ROHS
Model Number diameter 3mm
Minimum Order Quantity 10 rolls
Packaging Details Inner packing is plastic film .outer packing is carton
Delivery Time Within 5 working days After receipt of your deposit
Payment Terms L/C, T/T, L/C, Western Union, MoneyGram
Supply Ability 100,000,00 as per month
Product Details
Color Orange Hardness 90A
Longth 400 M/roll Usage Transmission Chain
Type PU Rough Round Belt Surface Smooth
High Light

pu extruded belt

,

green round belt

,

Abrasion Resistant Polyurethane Belts
Leave a Message
Product Description



Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll





Smooth Surface Urethane Round Belting Rohs Approved , Low Compression



Widely used in textiy

  printing and packing machine,food & beverage processing, wood processing  ,  paper processing electronic post service tobacco transmission line
 Wall floor tile conveying industrial line

Ceramic industry line or polishing line



We supply different kinds of PU V-belt, Round belt, Surper grip belt & Pentagon

Color: Orange, Red, Dark Green, Ivory, Natural  .

  • Shore Hardness:  Round belt - 87°A ± 2 .
  • Rough surface: Normal Rough / More Rough  .
  • Steel, Glass & Aramid Reinforcement on request.
  • Easily jointed with BCTech's Welding Kits
  • Features:
  • High tensile and tear strength
  • High abrasion resistance
  • Resistant to oil, grease, dust, moisture & most chemicals
  • Temperature Range: -35 ~ 85 Degrees

The types of TPU V-Belt:

Glossy surface round belt, rough surface round belt, v-belt, pentaone belt, hexagonal belt,

heptagonal belt, supper-grip belt, T belt, perallel belt.



Applications:
Mainly used in transmission and distribution products for the textile, clothing, food, packaging, printing, machinery, electronic, glass, chemicals, automobiles, beverages, furniture, toys, paper and other industries; Especially in the ceramic industry, widely used in the glazing Lines, transmission lines, polishing line etc.
Normal specifications including Z, M, A, B, C, D and the Pentangular Belt including A, B, C type, pentagonal belt normally used in the production line's corner.



Items No. φ least radius of gyration stretch rate Maximum tensile rate Hardness length of rolled

Dia.

(mm)

 In mm Stretching rate Kg Lbs

Hardness

(A)

Roll

(m)
2mm 0.79 20 1.5-3% 0.3 0.7 90A 400
3mm 0.98 25 1.5-3% 0.7 1.6 90A 400
4mm 1.38 35 1.5-3% 1.2 2.7 85A 200
15mm 4.72 120 1.5-3% 17.7 39.0 85A 30
18mm 5.71 145 1.5-3% 25.4 56.0 85A 30
20mm 6.30 160 1.5-3% 31.3 69.0 85A 30



Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll 0

Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll 1Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll 0Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll 3



Service commitment:



“ Quality for keeping going ,Credit to win the world”
