| Hardness: | 85 Shore A | Color: | Green |
|---|---|---|---|
| Material: | PU | Length: | 200m/roll 100m/roll 50m/roll 30m/roll |
| Stretching Rete: | 1.5-3% | Type: | PU Round Belt PU Belt |
| High Light: | pu round belt,pu extruded belt,85 shore A round polyurethane belting |
||

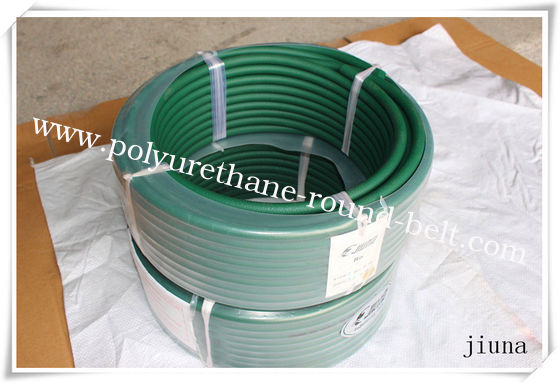

Industrial Transmission Polyurethane Round Belt Conveyor 200m / roll
PU Cord Belt Application :
1. Widely used in textile
2. printing and packing machine
3. food & beverage processing
4. wood processing
5. paper processing
6. electronic
7. post service
8. tobacco transmission line
9. Wall floor tile conveying industrial line
10. Ceramic industry line or polishing line
PU Cord Properties :
-High tensile strength
-Excellent abrasion resistance
-Good resistance to fuel , oils and oxygen
-Contains no plasticizer
-Wide application temperature from -30℃~+80℃
|
Items No. φ |
least radius of gyration |
stretch rate |
Maximum tensile rate |
Hardness |
length of rolled |
||
|
DIA (mm) |
In |
mm |
Stretching rate |
Kg |
Lbs |
Hardness (A) |
Roll (m) |
|
2mm |
0.79 |
20 |
1.5-3% |
0.3 |
0.7 |
90 |
400 |
|
3mm |
0.98 |
25 |
1.5-3% |
0.7 |
1.6 |
90 |
400 |
|
4mm |
1.38 |
35 |
1.5-3% |
1.2 |
2.7 |
85 |
200 |
|
5mm |
1.57 |
40 |
1.5-3% |
2.0 |
4.3 |
85 |
100 |
|
6mm |
1.97 |
50 |
1.5-3% |
3.2 |
7.0 |
85 |
100 |
|
7mm |
2.17 |
55 |
1.5-3% |
4.1 |
9.0 |
85 |
100 |
|
8mm |
2.56 |
65 |
1.5-3% |
5.0 |
11.0 |
85 |
100 |
|
9mm |
2.95 |
75 |
1.5-3% |
6.8 |
15.0 |
85 |
50 |
|
10mm |
2.95 |
75 |
1.5-3% |
7.7 |
17.0 |
85 |
50 |
|
12mm |
3.94 |
100 |
1.5-3% |
12.2 |
27.0 |
85 |
30 |
|
15mm |
4.72 |
120 |
1.5-3% |
17.7 |
39.0 |
85 |
30 |
|
18mm |
5.71 |
145 |
1.5-3% |
25.4 |
56.0 |
85 |
30 |
|
20mm |
6.30 |
160 |
1.5-3% |
31.3 |
69.0 |
85 |
30 |
