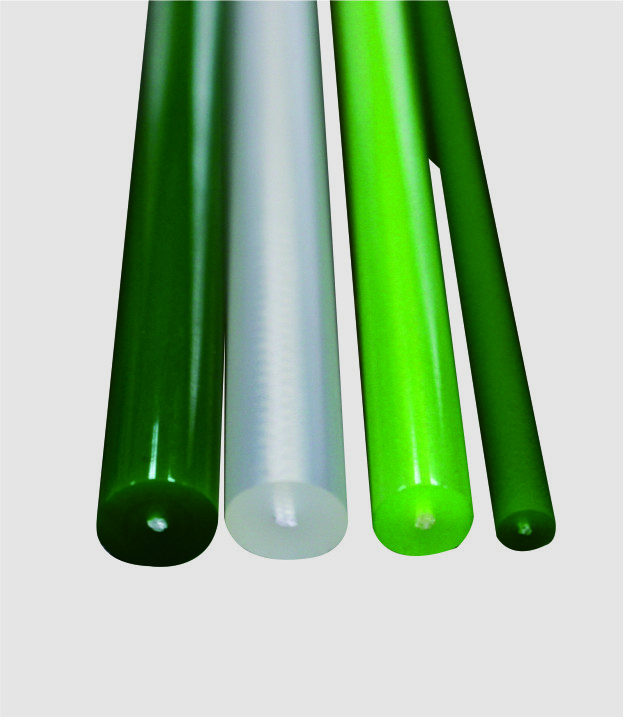

Smooth Surface urethane cord Rohs Approved / Low Compression transmission belt
| Place of Origin | China |
|---|---|
| Brand Name | JIUNAI |
| Certification | ROHS |
| Model Number | Diameter2mm-20mm |
| Minimum Order Quantity | 10 rolls |
| Packaging Details | Inner packing is plastic film .outer packing is carton |
| Delivery Time | Within 5 working days After receipt of your deposit |
| Payment Terms | L/C, T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 100,000,00 as per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Orange Color | Hardness | 90A |
|---|---|---|---|
| Longth | 400 M/roll | Usage | Transmission Chain |
| Type | PU Rough Round Belt | Surface | Smooth |
| Material | PU | ||
| Highlight | pu round belt,green round belt,Rohs Approved PU rough round belt |
||
Product Description
Smooth Surface urethane cord Rohs Approved / Low Compression transmission belt
We supply different kinds of PU V-belt, Round belt, Surper grip belt & Pentagon
Color: Orange, Red, Dark Green, Ivory, Natural .
Shore Hardness: Round belt - 87°A ± 2 .
Rough surface: Normal Rough / More Rough .
Steel, Glass & Aramid Reinforcement on request.
Easily jointed with BCTech's Welding Kits
Features:
High tensile and tear strength
High abrasion resistance
Resistant to oil, grease, dust, moisture & most chemicals
Temperature Range: -35 ~ 85 Degrees
The types of TPU V-Belt:
Glossy surface round belt, rough surface round belt, v-belt, pentaone belt, hexagonal belt,
heptagonal belt, supper-grip belt, T belt, perallel belt.
Applications:
Mainly used in transmission and distribution products for the textile, clothing, food, packaging, printing, machinery, electronic, glass, chemicals, automobiles, beverages, furniture, toys, paper and other industries; Especially in the ceramic industry, widely used in the glazing Lines, transmission lines, polishing line etc.
Normal specifications including Z, M, A, B, C, D and the Pentangular Belt including A, B, C type, pentagonal belt normally used in the production line's corner.
Items NO.Φ | Least radius of gyration | Stretching rate | Maximum tensile rate | Hardness | Length of rolled | ||
DIA(mm) | In | mm | % | Kg | Lbs | Shore( A) | Length of rolled |
2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 95 | 400 |
2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 95 | 400 |
3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 90 | 400 |
4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 90 | 200 |
5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 90 | 100 |
6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 90 | 100 |
7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 90 | 100 |
8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 90 | 100 |
9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 90 | 50 |
10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 90 | 50 |
12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 90 | 30 |
15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 90 | 30 |
18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 90 | 30 |
20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 90 | 30 |
