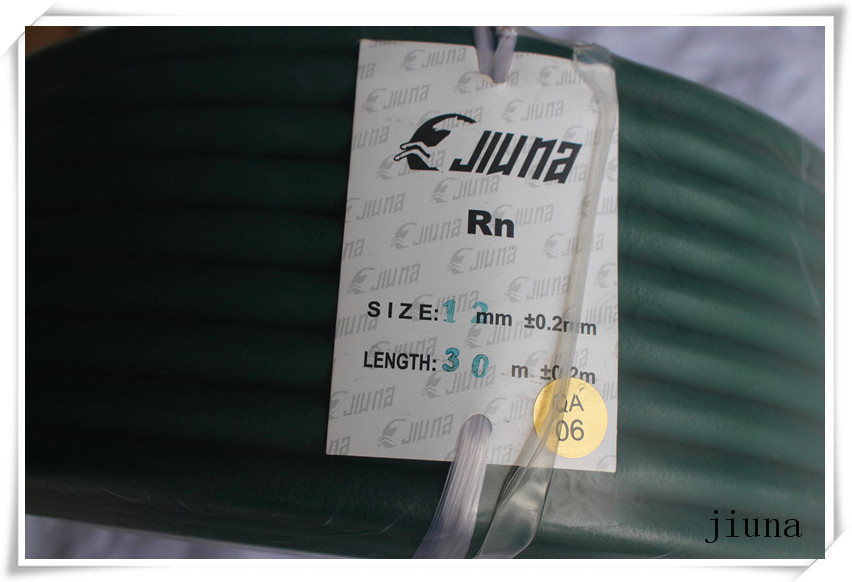

Green Urethane Polyurethane Round Belt For Textile , 30m / roll
| Place of Origin | China |
|---|---|
| Brand Name | Jiuna |
| Certification | ROHS |
| Model Number | Diameter 2mm~20mm |
| Minimum Order Quantity | 10rolls |
| Packaging Details | Inner packing is plastic film .outer packing is carton . |
| Delivery Time | Within 5 working days After receipt of your deposit |
| Payment Terms | T/T, 50% payment in advance ,50% balance before shipment |
| Supply Ability | 96.000 meters per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Hardness | 85 Shore A | Color | Dark Green |
|---|---|---|---|
| Material | PU | Length | 30m/roll |
| Stretching Rete | 1.5-3% | Type | PU Round Belt |
| High Light | pu round belt,green round belt,Polyurethane Round Belt 30m / roll |
||
Product Description
Green Urethane Polyurethane Round Belt For Textile , 30m / roll
Polyurethane Urethane Round Belt For Textile
|
Items No. φ |
least radius of gyration |
stretch rate |
Maximum tensile rate |
Hardness |
length of rolled |
||
|
DIA (mm) |
In |
mm |
Stretching rate |
Kg |
Lbs |
Hardness (A) |
Roll (m) |
|
2mm |
0.79 |
20 |
1.5-3% |
0.3 |
0.7 |
90 |
400 |
|
3mm |
0.98 |
25 |
1.5-3% |
0.7 |
1.6 |
90 |
400 |
|
4mm |
1.38 |
35 |
1.5-3% |
1.2 |
2.7 |
85 |
200 |
|
5mm |
1.57 |
40 |
1.5-3% |
2.0 |
4.3 |
85 |
100 |
|
6mm |
1.97 |
50 |
1.5-3% |
3.2 |
7.0 |
85 |
100 |
|
7mm |
2.17 |
55 |
1.5-3% |
4.1 |
9.0 |
85 |
100 |
|
8mm |
2.56 |
65 |
1.5-3% |
5.0 |
11.0 |
85 |
100 |
|
9mm |
2.95 |
75 |
1.5-3% |
6.8 |
15.0 |
85 |
50 |
|
10mm |
2.95 |
75 |
1.5-3% |
7.7 |
17.0 |
85 |
50 |
|
12mm |
3.94 |
100 |
1.5-3% |
12.2 |
27.0 |
85 |
30 |
|
15mm |
4.72 |
120 |
1.5-3% |
17.7 |
39.0 |
85 |
30 |
|
18mm |
5.71 |
145 |
1.5-3% |
25.4 |
56.0 |
85 |
30 |
|
20mm |
6.30 |
160 |
1.5-3% |
31.3 |
69.0 |
85 |
30 |
These PU Round Belts also feature high resistance to wear & tear that enables them to be used for more and more applications by wide range of industries.
Features:
* These can be easily welded in situations using simple equipment and there is no need to dismantle
* Their flexibility enables successful repairs to be carried out immediately & avoids stopping production
* Stocks are reduced & simplified as only one roll is required for each cross-section
* These can be instantly adapted to all problems by lengthening, shortening as well as modifying as required
* As they can be easily welded, it is often possible to repair drive round, II V II or flat belts that have been damaged
* All off-cuts are useable
* These provide great freedom in designing conveyors & selecting spacing
* The various coefficients of friction allow wide choice to suit problems to be solved as well as provide suitable carrying characteristics for products being conveyed
