SGS ISO9001: 2008 Certified Polyurethane V Belt with Drive Transmission and 30M/Rolls
| Minimum Order Quantity | 1,000 |
|---|---|
| Price | 1.2 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Hardness | 85A-95A | Size | Customize |
|---|---|---|---|
| Specification | A, B, C | Width A | 13mm |
| Height A | 17mm | Hardness A | 90A |
| Length A | 30m/roll | Width B | 17mm |
| Height B | 22mm | Hardness B | 90A |
| Length B | 30m/roll | Width C | 22mm |
| Height C | 28mm | Hardness C | 90A |
| Length C | 30m/roll | ||
| Highlight | SGS ISO9001: 2008 Certified Polyurethane V Belt,Drive Transmission PU V Belt,30M/Rolls Ridge Top V-Belt |
||
Product Description

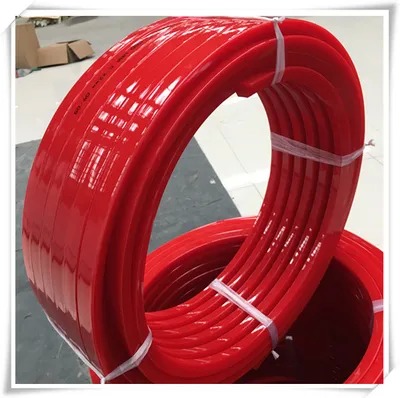

Red PU Extruded Belt
Ceramic Industrial PU Ridge Top belt Polyurethane V Belt B-17/C-22 type for transmission.
Ridge Top V-Belt Features
- Very soft belt material with high elasticity
- Excellent adhesion properties
- Available with smooth and rough surface options
- Maintains flexibility at low temperatures
- Optional reinforcement available
- Standard color: orange
Applications
- Furniture manufacturing industry
- Printing line operations
- Bottle and can return systems with deposit refund
- Vertical shaft drive transport systems
- Linear track guiding profiles for welding applications
- Roller conveyor systems
Technical Specifications
| Type | X (mm) | H (mm) | Hardness (A) | M/rolls | Reinforced |
|---|---|---|---|---|---|
| A | 13 | 17 | 90 | 30 | · |
| B | 17 | 22 | 90 | 30 | · |
| C | 22 | 28 | 90 | 30 | · |
Product Overview
Ridge top V-belts are primarily used in the ceramic and tile industry. Our standard product range includes 2-component Ridge top V-belts that combine superior adhesion with high tensile strength. These belts can be reinforced with polyester for enhanced durability.
Quality for keeping going, Credit to win the world
