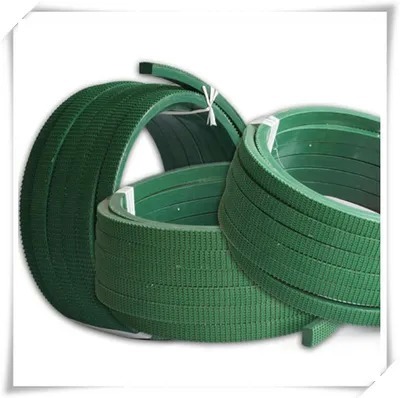

Non-Reinforced Polyurethane V Belt with Strong Tensile Strength and PVC Grip Top Surface for Superior Grip
| Minimum Order Quantity | 1,000 |
|---|---|
| Price | 1.8 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PU | Inside Material | PU |
|---|---|---|---|
| Hardness | 85 Shore A ~90 Shore A | Profile Shape | Vee |
| Profile Size | A/13, B/17, C/22 | Reinforcement | None |
| Color | Green, Red | Durometer | 80A, 90A |
| Top Surface | PVC | Package Length | 30meter /roll |
| Width A | 13mm | Height A | 8mm |
| Width B | 17mm | Height B | 11mm |
| Width C | 22mm | ||
| Highlight | Non-Reinforced Polyurethane V Belt,Strong Tensile Strength Super Grip Belt,PVC Grip Top Surface PU V Belt |
||
Product Description
Non-Reinforced Super Grip Belt
Conveyor PU V Belt with Super Grip / Transmission Polyurethane V Belt Top Green PVC
Manufacturer Overview
Wuxi Jiunai Polyurethane Products Co., Ltd is located in Wuxi City Shitang Bay Mountain Luoshe Town Industrial Park, near to 312 National Road. The company has international-leading polyurethane production lines and advanced testing equipment, maintaining a leading position in production scale, process technology, and technical strength.
Super Grip Belt Features
- Profile shape: Vee
- Profile size: A/13, B/17, C/22
- Reinforcement: None
- Color: Green, Red
- Compliancy: RoHS
- Durometer: 80A, 90A
- Material: Polyurethane, PVC Top Surface
- Special Feature: PVC Grip Top Surface
- Package Length: 30meter/roll
- Easily welded endless vee belt
Vee-Belt Applications
Widely used in conveying slippery environments and up steep inclines in industrial applications.
Technical Specifications
| Specification | X(mm) | H(mm) | Z(mm) | M/rolls | Reinforced | Arabesquitic |
|---|---|---|---|---|---|---|
| A | 13 | 8 | 3.5 | 30 | · | · |
| B | 17 | 11 | 3.5 | 30 | · | · |
| C | 22 | 14 | 3.5 | 30 | · | · |
| D | 32 | 19 | 3.5 | 30 | · | · |
| M | 8 | 4 | 50 | |||
| Z | 10 | 5 | 3.5 | 50 | · | · |
Product Description
Super grip belts are ideally suited for applications requiring conveying in slippery environments, up steep inclines, or moving easily damaged products. These belts combine the elasticity of an unreinforced V-belt with a super grip surface. The PU Vee Super Grip with top PVC surface is soft and tacky enough to protect delicate cargo while providing excellent grip.
