Corrugated Super Grip Belt with 85 Shore a ~90 Shore a Hardness and 30meter/roll Length for Textile Conveying
| Minimum Order Quantity | 1,000 |
|---|---|
| Price | 1.8 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Super Grip Belt | Type | Super Grip Belt |
|---|---|---|---|
| Material | PU | Inside Material | PU |
| Feature | Tear-Resistant, Wear-Resistant | Color | Red V Belt Green Top PVC Belt |
| Hardness | 85 Shore A ~90 Shore A | Profile Shape | Vee |
| Profile Size | A/13, B/17, C/22 | Reinforcement | None |
| Durometer | 80A, 90A | Top Surface | PVC |
| Package Length | 30meter /roll | X(mm) | 13, 17, 22, 32, 8, 10 |
| H(mm) | 8, 11, 14, 19, 4, 5 | ||
| Highlight | 85 Shore a ~90 Shore a Super Grip Belt,30meter/roll PU V Belt,Corrugated Super Grip Belt |
||
Product Description

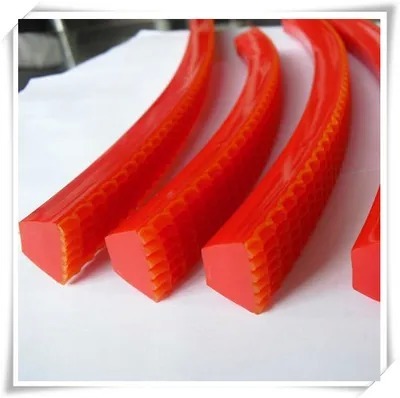

Red Corrugated Grip Belt for Textile
Conveyor PU V Belt with Super Grip / Transmission Polyurethane V Belt Top Green PVC. Designed for superior traction in demanding industrial applications.
Product Features
- Profile shape: Vee
- Profile sizes: A/13, B/17, C/22
- Reinforcement: None
- Available colors: Green, Red
- Compliant with RoHS standards
- Durometer options: 80A, 90A
- Material: Polyurethane with PVC Top Surface
- Special feature: PVC Grip Top Surface
- Package length: 30 meter/roll
- Easily welded endless vee belt
Applications
Ideal for conveying in slippery environments, steep incline conveying, and handling delicate products where superior grip is essential.
Technical Specifications
| Specification | X(mm) | H(mm) | Z(mm) | M/rolls | Reinforced | Arabesquitic |
|---|---|---|---|---|---|---|
| A | 13 | 8 | 3.5 | 30 | · | · |
| B | 17 | 11 | 3.5 | 30 | · | · |
| C | 22 | 14 | 3.5 | 30 | · | · |
| D | 32 | 19 | 3.5 | 30 | · | · |
| M | 8 | 4 | 50 | |||
| Z | 10 | 5 | 3.5 | 50 | · | · |
Product Advantages
Super grip belts are specifically designed for applications requiring elasticity combined with superior traction. The PVC top surface provides exceptional grip while being soft enough to protect delicate cargo. The ultra-high grip material features an extremely compliant pattern for optimal performance.
"Quality for keeping going, Credit to win the world" - Our service commitment
Manufactured by Wuxi Jiunai Polyurethane Products Co., Ltd, located in Wuxi City with convenient transportation access. We utilize international advanced technology and testing equipment to maintain leading position in production scale, process, and technical strength.
