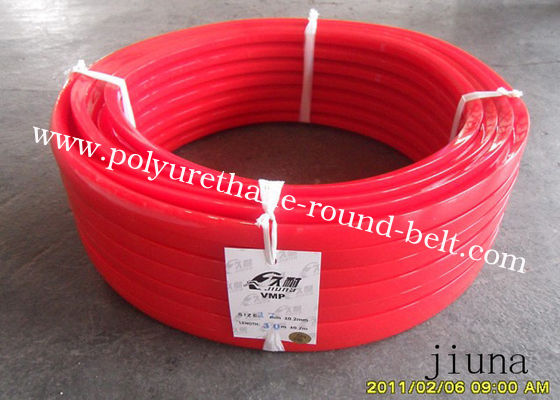

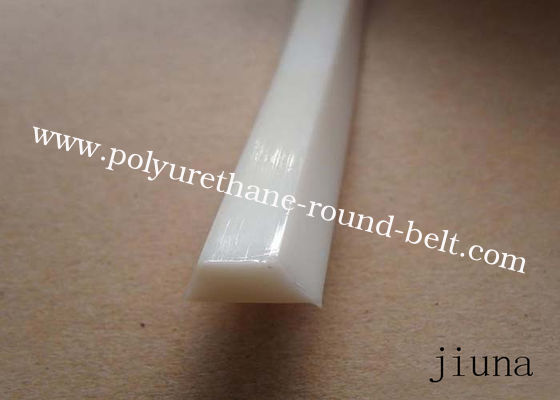

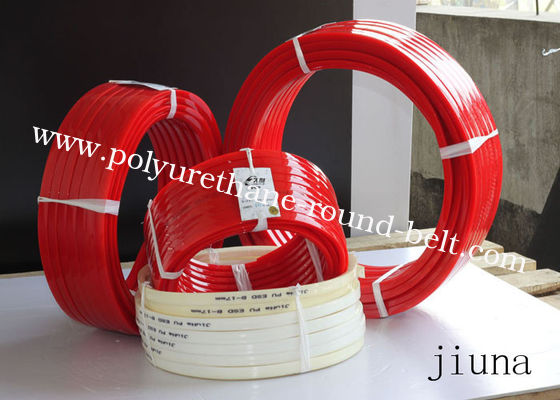

Red White Green Hardness 90a Pu V Belt 30m Per Roll For Ceramic Production Lines

  • Red White Green Hardness 90a Pu V Belt 30m Per Roll For Ceramic Production Lines
  • Red White Green Hardness 90a Pu V Belt 30m Per Roll For Ceramic Production Lines
  • Red White Green Hardness 90a Pu V Belt 30m Per Roll For Ceramic Production Lines
  • Red White Green Hardness 90a Pu V Belt 30m Per Roll For Ceramic Production Lines
Place of Origin China
Brand Name Jiuna
Certification ROHS
Model Number A-13 / B-17 / C-22
Minimum Order Quantity 600 Meter
Packaging Details Inner packing is plastic film .outer packing is carton
Delivery Time Within 5 working days After receipt of your deposit
Payment Terms T/T, 50% payment in advance ,50% balance before shipment
Supply Ability 96.000 meters per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Main Function Drive Transmission Hardness 90 Shore A
Material PU Length 30 Meter /rolls
Type V-belt Color Any Color
Highlight

green round belt

,

pu round belt

,

hardness 90a pu v belt
Leave a Message
Product Description



Red White Green Hardness 90a Pu V Belt 30m Per Roll For Ceramic Production Lines





(1) Thermoplastic polyurethane material, easy to be melted jointed,100% pure polyurethane
(2) Reinforced by Polyester Cord or Steel Cord
(3) Temperature range -35 degree  - 80 degree
(4) Shore A hardness range 80A - 98A
(5)  With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)  Specification including A, B, C , D, M , Z, widely used in ceramic industries with excellent abrasion resistance.



Product Technical Parameters :



Specification

X(mm)

H(mm)

Z(mm)

M/rolls

reinforced

arabesquitic

A

13

8

3.5

30

·

·

B

17

11

3.5

30

·

·

C

22

14

3.5

30

·

·

D

32

19

3.5

30

·

·

M

8

4



50





Z

10

5

3.5

50

·

·



Characteristics for PU V-section belt

excellent elasticity and damping characteristics

High tensile strength

With smooth surface v-belts

Color :red ,white

Hardness 90 shore A

Available with or without reinforced cord .

Replacement for conventional rubber V-belts , but more wear-resisting and can welding.

Red White Green Hardness 90a Pu V Belt 30m Per Roll For Ceramic Production Lines 0



Red White Green Hardness 90a Pu V Belt 30m Per Roll For Ceramic Production Lines 1Red White Green Hardness 90a Pu V Belt 30m Per Roll For Ceramic Production Lines 2Red White Green Hardness 90a Pu V Belt 30m Per Roll For Ceramic Production Lines 3Red White Green Hardness 90a Pu V Belt 30m Per Roll For Ceramic Production Lines 4

Products introduction



In addition , We are able to tailor Round and V-belts of different lengths and diameters - within a few days and with high quality.
