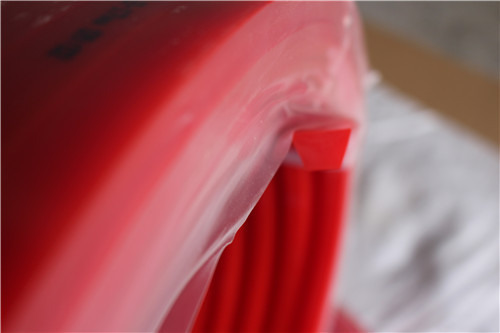

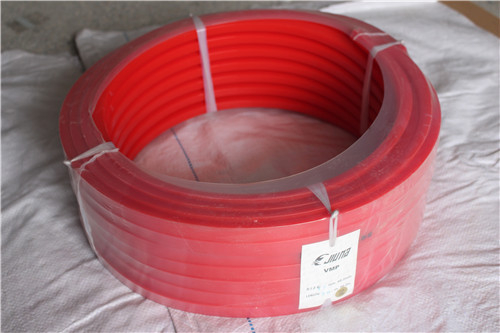

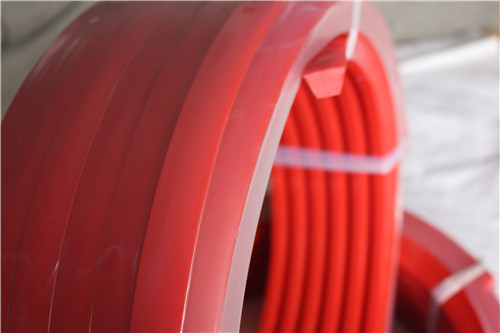

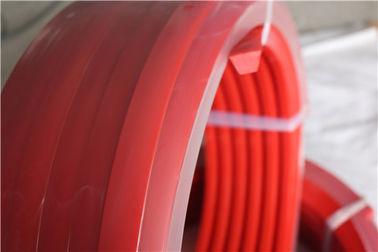

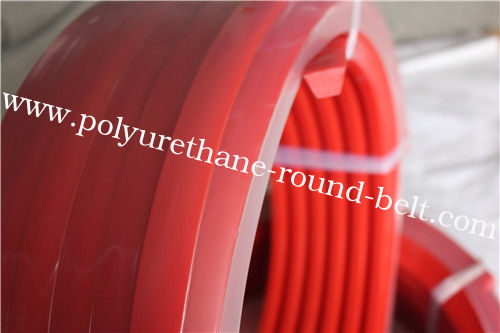

Ceramic Industrial Polyurethane V Section Belt With Smooth Surface

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Ceramic Industrial Polyurethane V Section Belt With Smooth Surface

Product Details:
Place of Origin: china
Brand Name: VOLTA
Certification: ROHS
Model Number: PU v belt
Payment & Shipping Terms:
Minimum Order Quantity: 10 rolls
Packaging Details: Inner packing is plastic film .outer packing is carton
Payment Terms: Western Union, MoneyGram, T/T
Detailed Product Description
Material: Import PU Material Color: Red Color
Length: 30m/roll Type: V Belt
Surface: Smooth Application: Transmission Belt
High Light:

green round belt

,

pu extruded belt

,

smooth polyurethane v section belt

Ceramic Industrial Polyurethane V Section Belt With Smooth Surface

Product Description

TPU V Belts
Specifications
PU V belt


Details:


(1) Thermoplastic polyurethane material, easy to be melted jointed
(2) Reinforced by Polyester Cord or Steel Cord
(3) Temperature range -35 - 80
(4) Shore A hardness range 80A - 98A
(5) With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6) Round Belt:
Round Belt Dia. Is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.

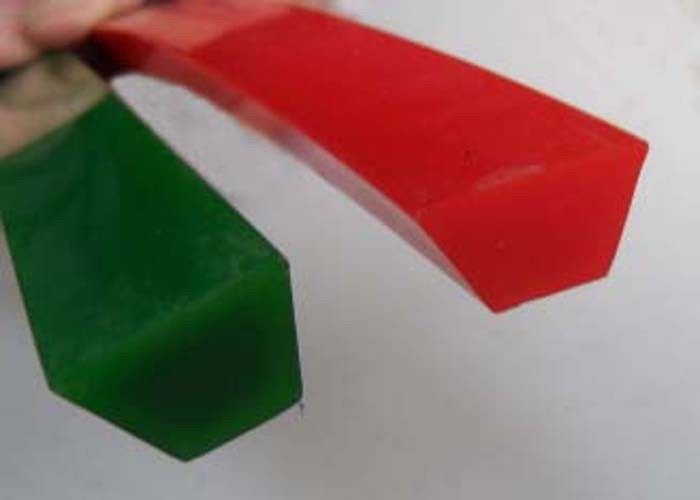

(7) V-belt
Specifications include the A, B, C, D, M, Z type
Widely used in ceramic industry, excellent wear resistance





Specification

X(mm)

H(mm)

 Hardness (Shore A)

M/rolls

Reinforced

A

13mm

8

    90A

30

·

B

17mm

11

    90A

30

·

C

22mm

14

    90A

30

·

D

32mm

19

    90A

30

·

M

8mm

4

    90A

50



Z

10mm

5

    90A

50

·





Ceramic Industrial Polyurethane V Section Belt With Smooth Surface 0Ceramic Industrial Polyurethane V Section Belt With Smooth Surface 1Ceramic Industrial Polyurethane V Section Belt With Smooth Surface 2
